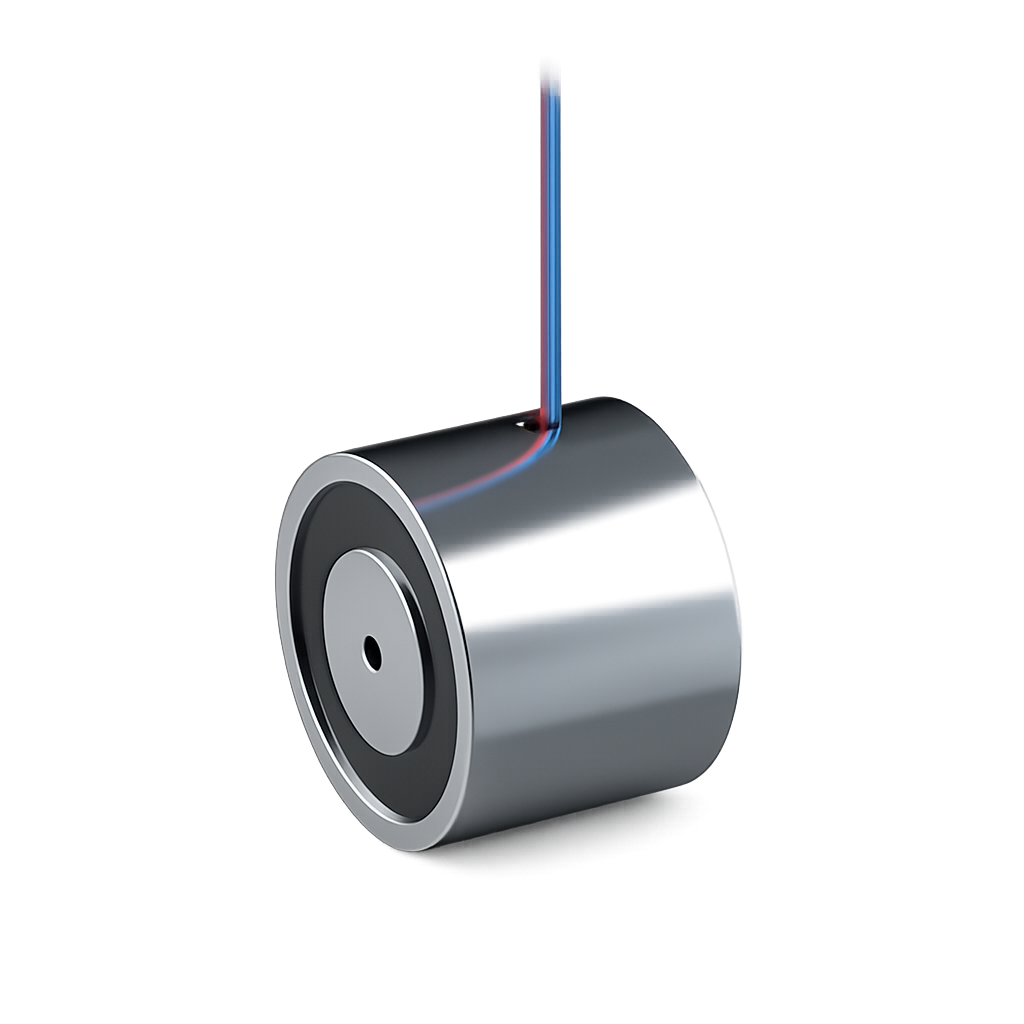

Electromagnet (NC - energize to release), 24V DC, 225 lbs. holding force - 01070002
$896.00
Kendrion
Read more
$408.00
Part Number GTN035.000001| Function: Energize to release | 24V DC | 40% Duty Cycle | 10.3W |67.5 lbs. Holding Force | Type Number GT035N001
Are you looking for an Electromagnet with 24V DC that provides 67.5lbs. (300N) of holding force and releases after energizing? Solenoid Ninja has the perfect solution for you! Our Normally Closed Electro Holding Magnets from Kendrion are used in the machine building industry for various applications. The integrated permanent magnet is holding the armature plate (sold separately - see accessories) in place. When power is applied, the magnetic field of the coil overcomes the permanent magnetic field and releases the armature plate.
Unable to find your required voltage or performance parameters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Duty cycle: | 40% |
| Power Draw: | 10.3 W |
| Holding force: | 67.5bs. [300N] |
| Minimum thickness of armature plate |
0.24" [6mm] |
| Connection: |
7.5" wire leads (200mm) |
| IP class: | IP 65 (device) IP00 (connection) |
| Insulation class: | B |
Bulk Pricing:
- Buy 5 or above and pay only $278.00 each
Description
Part Number GTN035.000001| Function: Energize to release | 24V DC | 40% Duty Cycle | 10.3W |67.5 lbs. Holding Force | Type Number GT035N001
Are you looking for an Electromagnet with 24V DC that provides 67.5lbs. (300N) of holding force and releases after energizing? Solenoid Ninja has the perfect solution for you! Our Normally Closed Electro Holding Magnets from Kendrion are used in the machine building industry for various applications. The integrated permanent magnet is holding the armature plate (sold separately - see accessories) in place. When power is applied, the magnetic field of the coil overcomes the permanent magnetic field and releases the armature plate.
Unable to find your required voltage or performance parameters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Duty cycle: | 40% |
| Power Draw: | 10.3 W |
| Holding force: | 67.5bs. [300N] |
| Minimum thickness of armature plate |
0.24" [6mm] |
| Connection: |
7.5" wire leads (200mm) |
| IP class: | IP 65 (device) IP00 (connection) |
| Insulation class: | B |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
GTN035.000001-1
Availability:
Lead time 2 - 3 weeks
Weight:
1.10 LBS
Product Category:
Holding Magnets
Supply Voltage:
24V DC
Duty Cycle:
40%
Holding Force:
67.5 lbs.
Energize to Release:
Yes
Fire Safety:
No
