Vibratory Feeder Drive, 230V AC, 50-60Hz, 14VA - 24040003

$342.00

Part Number 24040003| 230V AC | 50-60Hz | 14VA | Type Number OMW516001A00

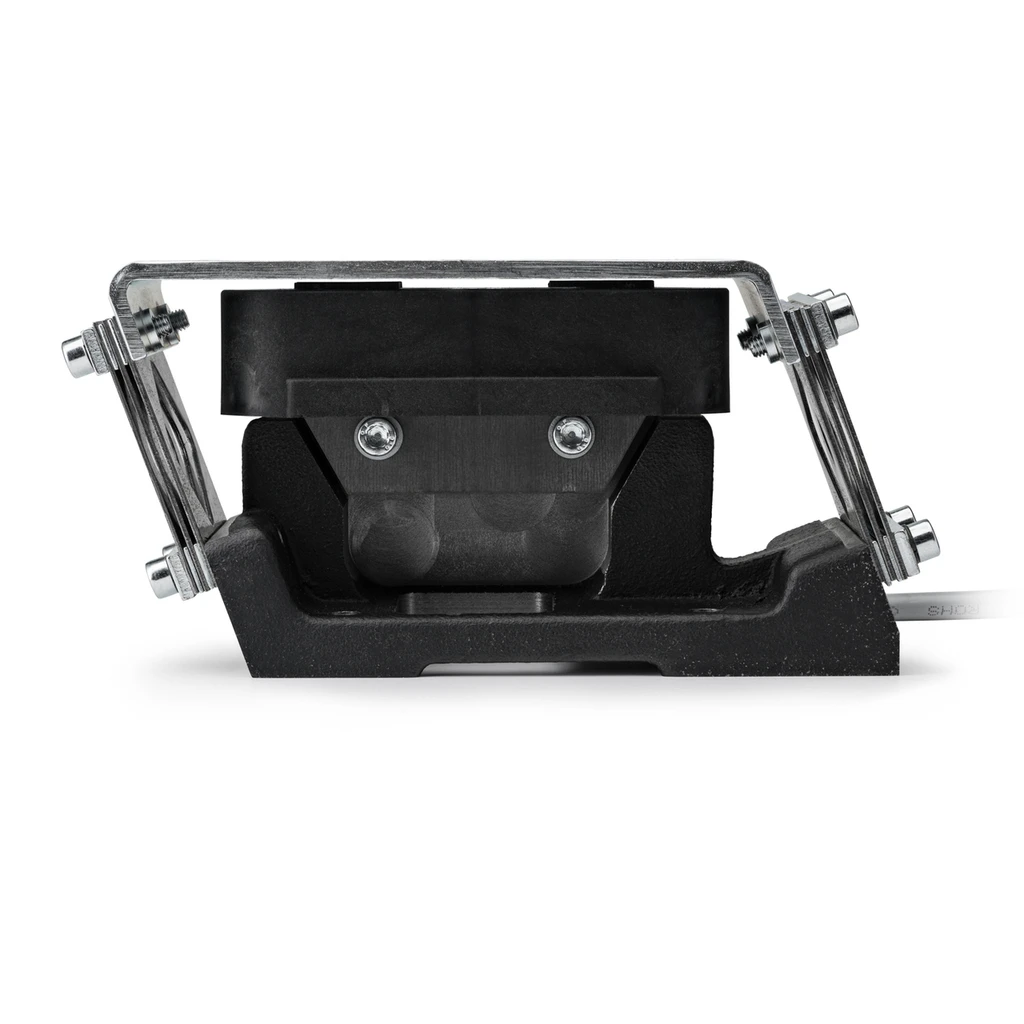

Are you looking for a Vibratory Feeder Drive with 230V AC, 50-60Hz and 14VA? Solenoid Ninja has the perfect solution for you! Oscillating Solenoids from Kendrion are used in the automation industry in linear feeders. Our Vibratory Feeder Drive includes a vibratory feeder coil, sets of leaf springs a base and a top plate.

Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.

Technical Details

Supply voltage:	230V AC
Frequency:	50-60Hz
Duty cycle:	100%
Apparent Power:	14VA
Stroke:	0.051" [1.3mm]
Max. loading weight:	1.1lbs [0.5kg]
Connection:	3' cable
IP class:	IP 54
Insulation class:	F
Accessories:	Additional Springs Protective Cover

Downloads

Buy 5 - 9 and pay only $277.00 each
Buy 10 - 19 and pay only $154.00 each

Description
Reviews (0)
Additional info

Description

Part Number 24040003| 230V AC | 50-60Hz | 14VA | Type Number OMW516001A00

Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.

Technical Details

Supply voltage:	230V AC
Frequency:	50-60Hz
Duty cycle:	100%
Apparent Power:	14VA
Stroke:	0.051" [1.3mm]
Max. loading weight:	1.1lbs [0.5kg]
Connection:	3' cable
IP class:	IP 54
Insulation class:	F
Accessories:	Additional Springs Protective Cover
