Single-Phase Overexcitation Rectifier, 220V to 300V AC - 2A - 32 17350E00
$386.00
Binder Magnete
Read more
$550.00

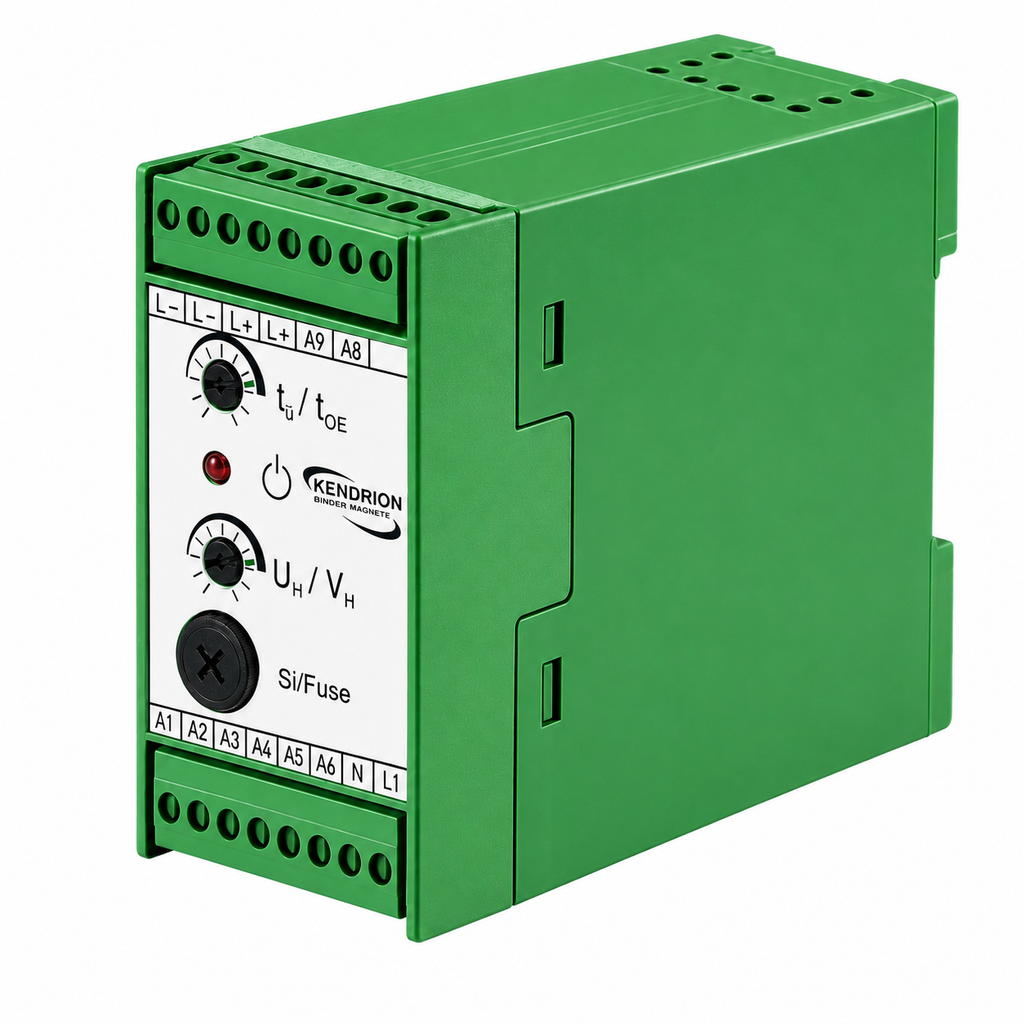

Part Number 33 43311A03 | Single-phase rectifier with overexcitation | 115-230V AC
Are you looking for a Single-phase rectifier with over-excitation, rated for 115-230V AC? Solenoid Ninja has the perfect solution for you! These overexcitation rectifiers are designed to increase the attractive force and reduce the attraction time of actuating solenoids, to shorten the coupling and disconnection times of clutches and brakes and to decrease the power consumption of clutches, brakes and actuating solenoids. To increase the attractive force, the solenoid is overexcited during the overexcitation time, applying bridge rectified voltage. Then the rectifier changes over to the selected holding voltage which must not exceed the rated voltage of the solenoid. terminals for easy installation.
Technical Details
| Input voltage range: | 115 - 230V AC (±10%) |
| Overexcitation: |
102/205 VDC |
| Max. current: |
8ADC (hit) |
| Hit time: | 0.15 - 3 seconds |
| Connection: | 16-pole plug in screw terminals |
| IP class: | IP 00 |
Bulk Pricing:
- Buy 5 - 9 and pay only $420.00 each
- Buy 10 or above and pay only $385.00 each
Description
Part Number 33 43311A03 | Single-phase rectifier with overexcitation | 115-230V AC
Are you looking for a Single-phase rectifier with over-excitation, rated for 115-230V AC? Solenoid Ninja has the perfect solution for you! These overexcitation rectifiers are designed to increase the attractive force and reduce the attraction time of actuating solenoids, to shorten the coupling and disconnection times of clutches and brakes and to decrease the power consumption of clutches, brakes and actuating solenoids. To increase the attractive force, the solenoid is overexcited during the overexcitation time, applying bridge rectified voltage. Then the rectifier changes over to the selected holding voltage which must not exceed the rated voltage of the solenoid. terminals for easy installation.
Technical Details
| Input voltage range: | 115 - 230V AC (±10%) |
| Overexcitation: |
102/205 VDC |
| Max. current: |
8ADC (hit) |
| Hit time: | 0.15 - 3 seconds |
| Connection: | 16-pole plug in screw terminals |
| IP class: | IP 00 |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
33 43311A03-1
Availability:
Lead time 2-3 weeks
Weight:
0.31 LBS
Min Purchase Qty:
1 unit
Product Category:
Accessories
