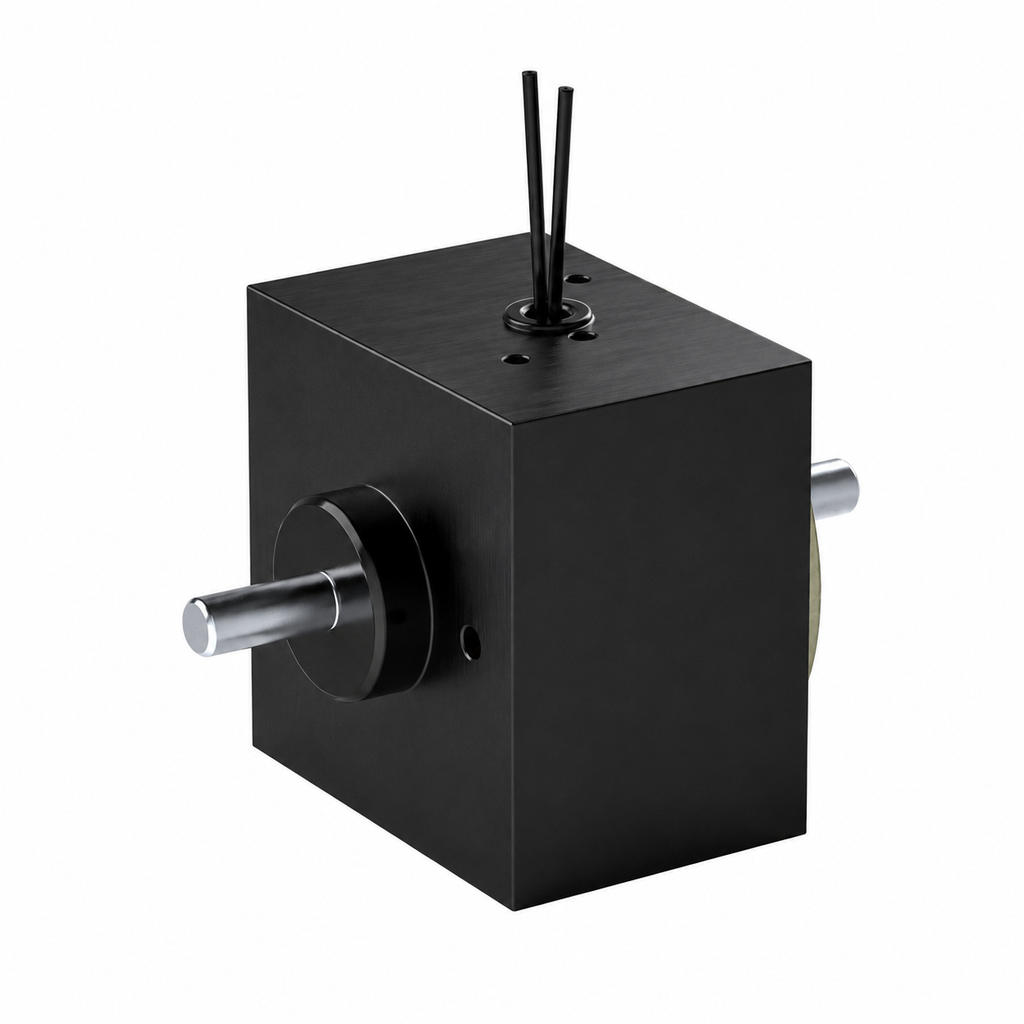

Rotary Solenoid, 24V DC, 95 degree Rotation Angle - 18054
$537.00
Kuhnke
Read more
$549.00
Part Number: 90126 | 24V DC | Function: Spring return| 95° Rotation Angle | Type Number E 59 - BOL * - F - DS9420 - 24VDC 100%ED
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Function: | Spring return |
| Duty cycle: | 100% |
| Power draw: | 19.2W |
| Rotation angle: | 95° |
| Torque: | Start: 1.8Ncm End: 12.7Ncm |
| Connection: | Wire leads 20 cm |
| IP class: | IP 00 |
| Thermal class | B 130 °C |
Description
Part Number: 90126 | 24V DC | Function: Spring return| 95° Rotation Angle | Type Number E 59 - BOL * - F - DS9420 - 24VDC 100%ED
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Function: | Spring return |
| Duty cycle: | 100% |
| Power draw: | 19.2W |
| Rotation angle: | 95° |
| Torque: | Start: 1.8Ncm End: 12.7Ncm |
| Connection: | Wire leads 20 cm |
| IP class: | IP 00 |
| Thermal class | B 130 °C |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
90126
Availability:
Lead time 10 - 12 weeks
Weight:
1.26 LBS
