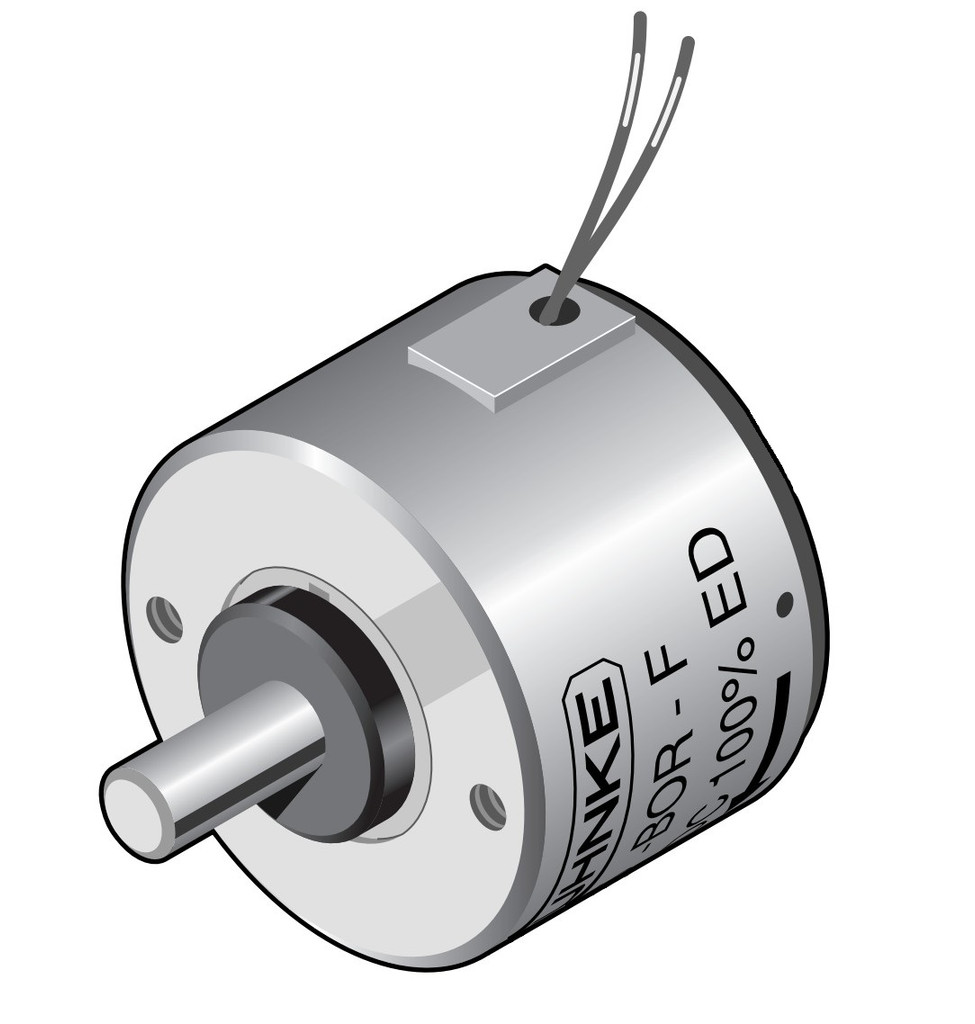

Rotary Latching Solenoid, 24V DC, 30 degree Rotation Angle - PDM050.000039
$510.00
Kuhnke
Read more
$203.00
Part Number: 67277 | 24V DC | Function: Spring return| 95° Rotation Angle | Type Number D 59 ROR - F - DS9420
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Function: | Spring return |
| Duty cycle: | 100% |
| Power draw: | 10W |
| Rotation angle: | 95° |
| Direction of rotation: | Clockwise rotation |
| Torque: | Start: 0.8Ncm End: 7.2Ncm |
| Connection: | Wire leads |
| IP class: | IP 00 |
| Switching time: | 20-30ms |
Description
Part Number: 67277 | 24V DC | Function: Spring return| 95° Rotation Angle | Type Number D 59 ROR - F - DS9420
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Function: | Spring return |
| Duty cycle: | 100% |
| Power draw: | 10W |
| Rotation angle: | 95° |
| Direction of rotation: | Clockwise rotation |
| Torque: | Start: 0.8Ncm End: 7.2Ncm |
| Connection: | Wire leads |
| IP class: | IP 00 |
| Switching time: | 20-30ms |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
67277
Availability:
Lead time 4 weeks
Weight:
0.85 LBS
