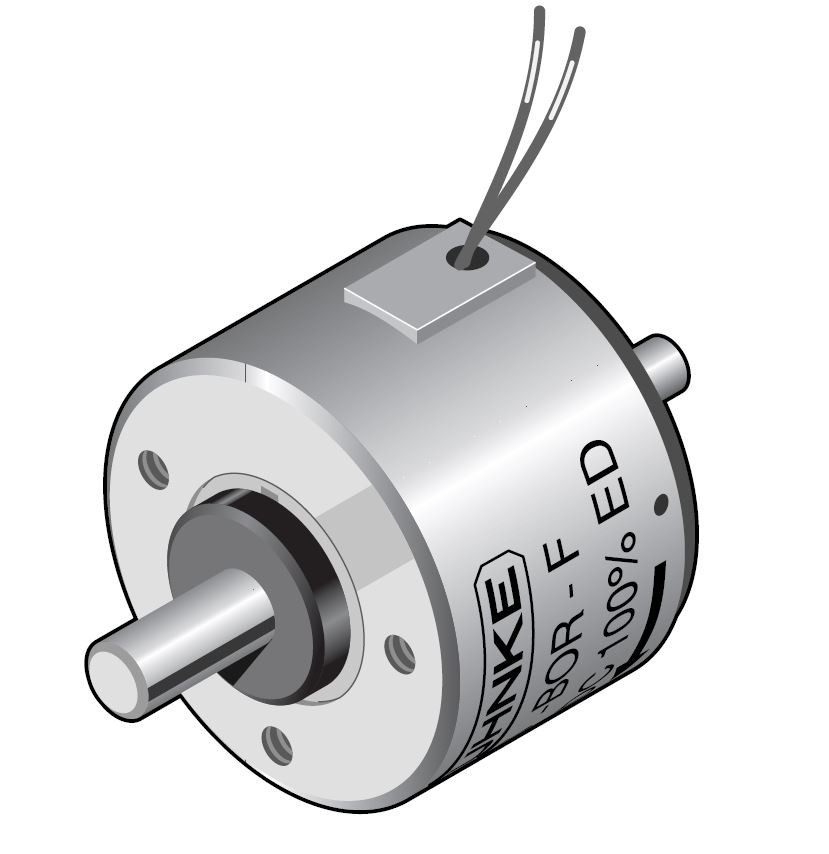

Rotary Solenoid, 24V DC, 95 degree Rotation Angle - 90126
$549.00
Kuhnke
Read more
$621.00
Part Number: 11387 | 24V DC | Function: Spring return| 95° Rotation Angle | Type Number D 79 - BOR - F - DS9420 - 24VDC 100%ED
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Function: | Spring return |
| Duty cycle: | 100% |
| Power draw: | 19.7W |
| Rotation angle: | 95° |
| Torque: | Start: 6.2 Ncm End: 26.0 Ncm |
| Connection: | Wire leads |
| IP class: | IP 00 |
| Switching time: | 13-60ms |
Description
Part Number: 11387 | 24V DC | Function: Spring return| 95° Rotation Angle | Type Number D 79 - BOR - F - DS9420 - 24VDC 100%ED
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Supply voltage: | 24V DC |
| Function: | Spring return |
| Duty cycle: | 100% |
| Power draw: | 19.7W |
| Rotation angle: | 95° |
| Torque: | Start: 6.2 Ncm End: 26.0 Ncm |
| Connection: | Wire leads |
| IP class: | IP 00 |
| Switching time: | 13-60ms |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
11387
Availability:
Lead time 14 - 16 weeks
Weight:
3.10 LBS
