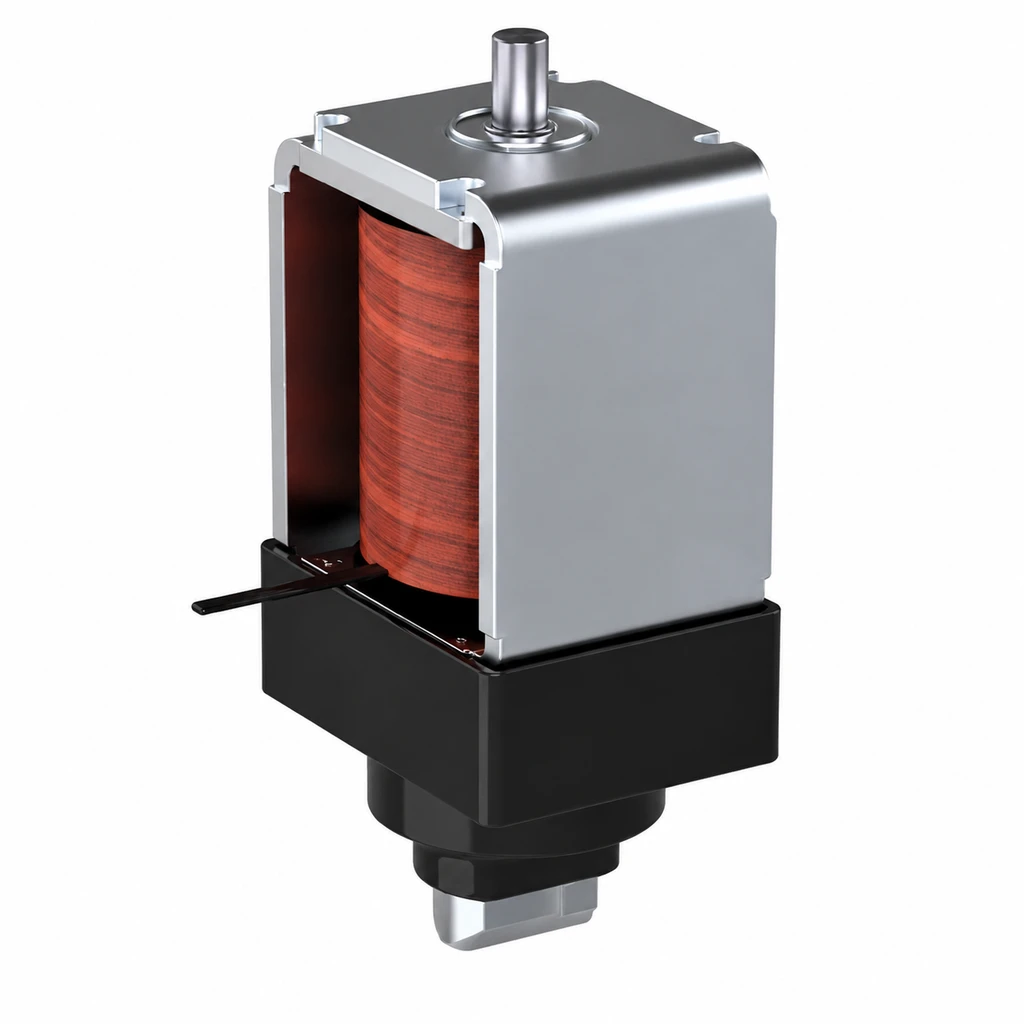

Power Pinch Valve, 24 V DC, 2 Way valve, NO - 198198-B4
$750.00
Kuhnke
Read more
$750.00
Part Number 201434-C1 | 24V DC | 100% Duty Cycle | 18W | 40N Clamping Force | 2-Way Valve | PVC and Silicone Tubing | Cartridge Design
Are you looking for a Solenoid Pinch Valve operating at 24V DC with a clamping force of 40N? Solenoid Ninja has the perfect solution for you! Pinch Valves from Kendrion Kuhnke are used in the medical and food industry to control the flow of sensitive media. This valve assembly with its precisely tuned magnetic and spring-loaded forces ensures precise and reliable function over time. Ready-to-install for applications with customer specific counterpart.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Normally Open |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power draw: | 18W |
| Clamping force: | 40N |
| Tube requirements: | PVC or Silicone material 4 to 8mm outer diameter 1 to 1.7mm wall thickness |
| Notes: |
Operating pressure needs |
Downloads
Bulk Pricing:
- Buy 5 or above and get 10% off
Description
Part Number 201434-C1 | 24V DC | 100% Duty Cycle | 18W | 40N Clamping Force | 2-Way Valve | PVC and Silicone Tubing | Cartridge Design
Are you looking for a Solenoid Pinch Valve operating at 24V DC with a clamping force of 40N? Solenoid Ninja has the perfect solution for you! Pinch Valves from Kendrion Kuhnke are used in the medical and food industry to control the flow of sensitive media. This valve assembly with its precisely tuned magnetic and spring-loaded forces ensures precise and reliable function over time. Ready-to-install for applications with customer specific counterpart.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Normally Open |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power draw: | 18W |
| Clamping force: | 40N |
| Tube requirements: | PVC or Silicone material 4 to 8mm outer diameter 1 to 1.7mm wall thickness |
| Notes: |
Operating pressure needs |
Downloads
Reviews (0)
Be the first to write a review
Be the first to write a review
Videos
Additional info
SKU:
201434
Availability:
Lead time 10-12 weeks
Weight:
1.35 LBS
Min Purchase Qty:
2 units
Product Category:
Valves
Supply Voltage:
24V DC
Duty Cycle:
100%
