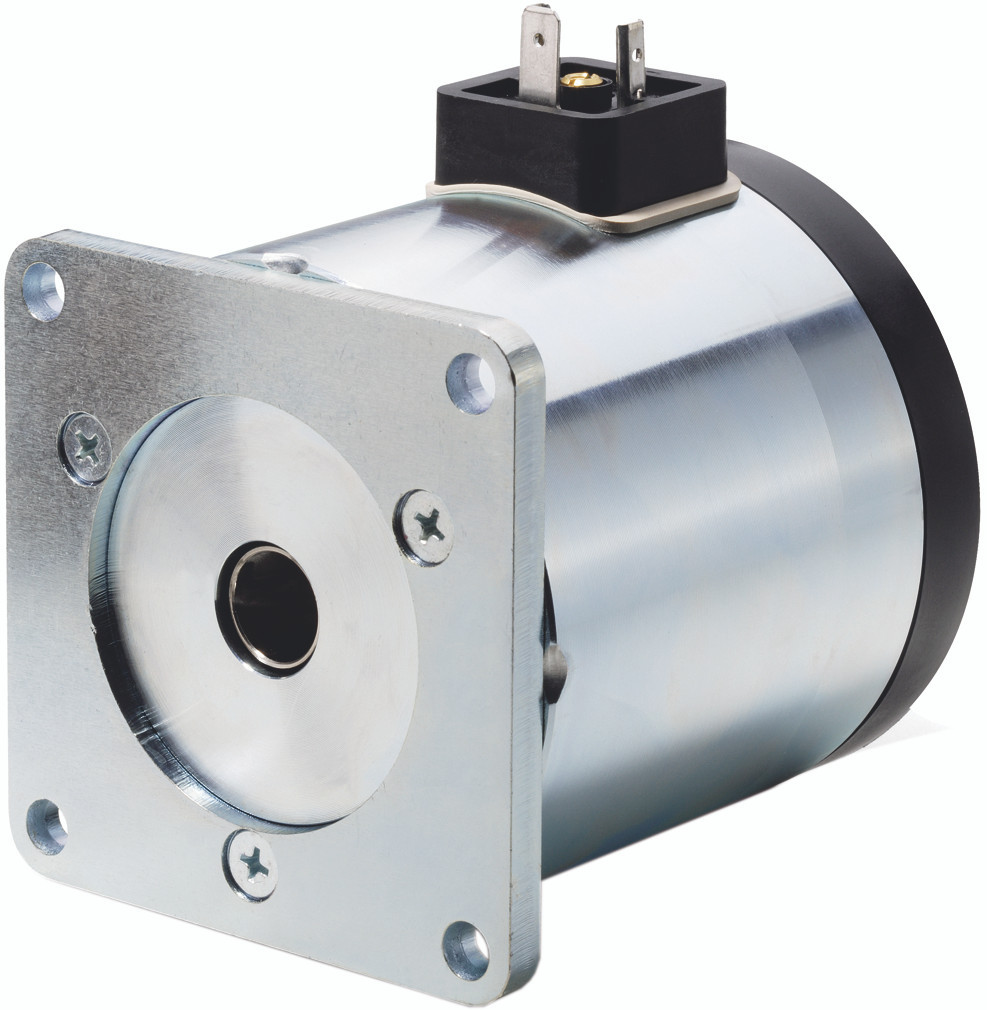

Linear Solenoid CSA approved, 24V DC, 8mm - 41060033
$1,511.00
Kendrion
Read more
$1,150.00
Part Number 41060024| Push type solenoid | 24V DC | 100% Duty Cycle | 15mm Stroke | 4.49 lbs. Force | 0.07A | Type Number 41 21406K00
Are you looking for a CSA approved Push Style Linear Solenoid with 24V DC that provides 15mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kendrion are used in the automation industry for different applications. Additional features of our tubular solenoid are the protection class and its high reliability.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power Draw: | 0.07A |
| Stroke: | 15mm |
| Force: | 4.49 lbs. (20N) (at the beginning of the stroke) |
| Connection: | Connector |
| IP class: | Solenoid: IP40 Connector: IP65 |
| Insulation class: | B |
| Accessories: | Connector GD 211 (part no. 430006) |
Downloads
Bulk Pricing:
- Buy 5 - 9 and pay only $895.00 each
- Buy 10 or above and pay only $680.00 each
Description
Part Number 41060024| Push type solenoid | 24V DC | 100% Duty Cycle | 15mm Stroke | 4.49 lbs. Force | 0.07A | Type Number 41 21406K00
Are you looking for a CSA approved Push Style Linear Solenoid with 24V DC that provides 15mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kendrion are used in the automation industry for different applications. Additional features of our tubular solenoid are the protection class and its high reliability.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power Draw: | 0.07A |
| Stroke: | 15mm |
| Force: | 4.49 lbs. (20N) (at the beginning of the stroke) |
| Connection: | Connector |
| IP class: | Solenoid: IP40 Connector: IP65 |
| Insulation class: | B |
| Accessories: | Connector GD 211 (part no. 430006) |
Downloads
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
41060024-1
Availability:
Lead time 14-16 weeks
Weight:
3.20 LBS
Min Purchase Qty:
1 unit
Product Category:
Linear Solenoids
Supply Voltage:
24V DC
Duty Cycle:
100%
Stroke:
15mm
Design:
Single Coil
