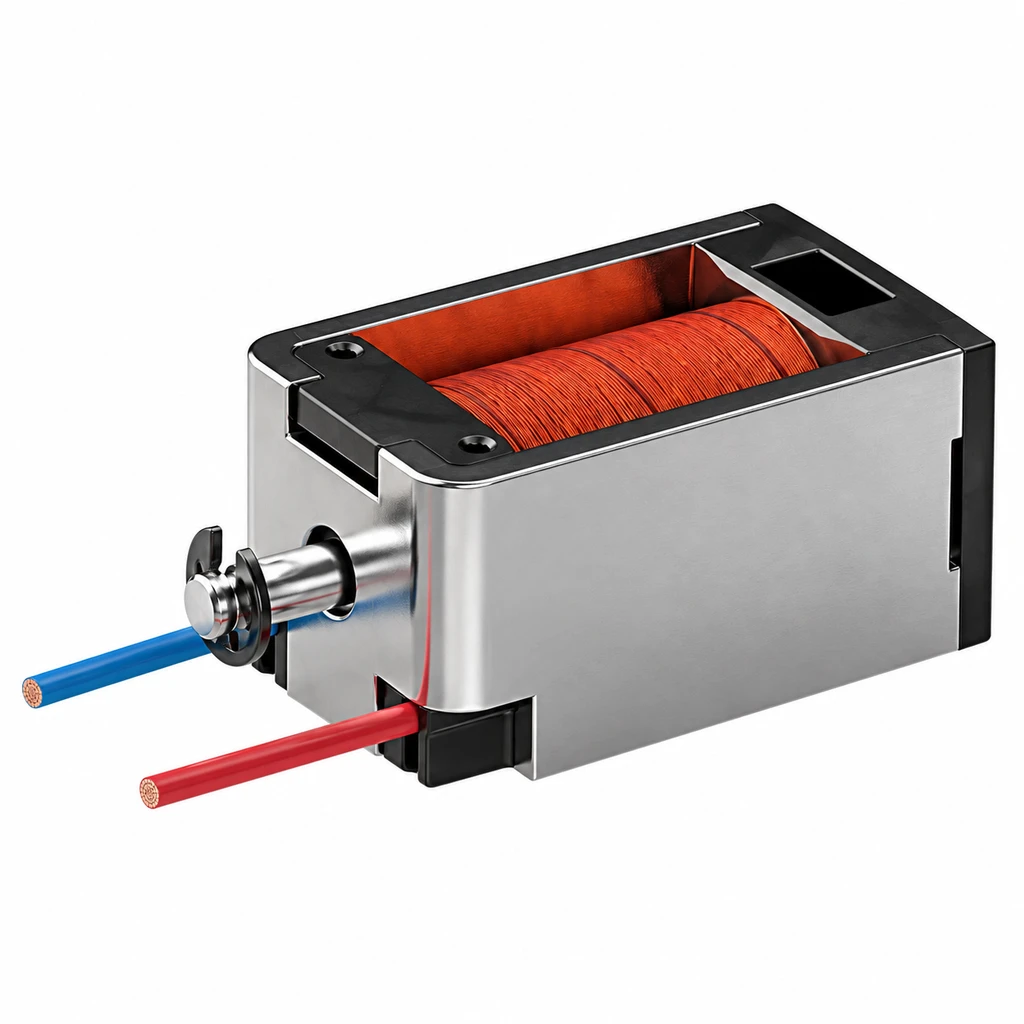

Latching Frame Solenoid, 24V DC, 2.5mm - 29265 - BI 8

Kuhnke
$97.00

Part Number 29265 | Latching frame solenoid | Voltage: 24V DC | Duty cycle: 15% | Stroke: 2.5mm | Power draw: 7.2W | Holding force: 3.5N | Type: BI 8 F-24V DC 15 ED

Are you looking for a 24V DC Miniature Latching Solenoid with 2.5mm of stroke and a latching force higher than 0.8lbs? Solenoid Ninja has the perfect solution for you! Bi-stable Solenoids from Kuhnke are used in the machine building industry for a wide range of applications. This small solenoid with its permanent magnet is built for applications where low power consumption is key. The solenoid will stay in one position with the help of the return spring and the other using the integrated permanent magnet - without power being applied. To switch the solenoid back and forth the polarity must be reversed.



Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.



Technical Details

Operation: Latching solenoid
Supply voltage: 24V DC
Duty cycle: 15%
Power Draw: 7.2W
Stroke: 2.5mm
Force:

Holding: 0.8lbs [3.5N]
Initial pull-in force: 0.04lbs [0.18N]

Switching time: 12ms
Connection: 4" wire leads
IP class:                IP 00
Insulation class: E







Downloads




Read more

Bulk Pricing:

  • Buy 5 - 10 and pay only $86.00 each
Add to wishlist

Description

Part Number 29265 | Latching frame solenoid | Voltage: 24V DC | Duty cycle: 15% | Stroke: 2.5mm | Power draw: 7.2W | Holding force: 3.5N | Type: BI 8 F-24V DC 15 ED

Are you looking for a 24V DC Miniature Latching Solenoid with 2.5mm of stroke and a latching force higher than 0.8lbs? Solenoid Ninja has the perfect solution for you! Bi-stable Solenoids from Kuhnke are used in the machine building industry for a wide range of applications. This small solenoid with its permanent magnet is built for applications where low power consumption is key. The solenoid will stay in one position with the help of the return spring and the other using the integrated permanent magnet - without power being applied. To switch the solenoid back and forth the polarity must be reversed.



Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.



Technical Details

Operation: Latching solenoid
Supply voltage: 24V DC
Duty cycle: 15%
Power Draw: 7.2W
Stroke: 2.5mm
Force:

Holding: 0.8lbs [3.5N]
Initial pull-in force: 0.04lbs [0.18N]

Switching time: 12ms
Connection: 4" wire leads
IP class:                IP 00
Insulation class: E







Downloads




Reviews (0)

Be the first to write a review

Additional info

SKU: 29265
Availability: Lead time 2 weeks
Weight: 0.01 LBS
Min Purchase Qty: 1 unit
