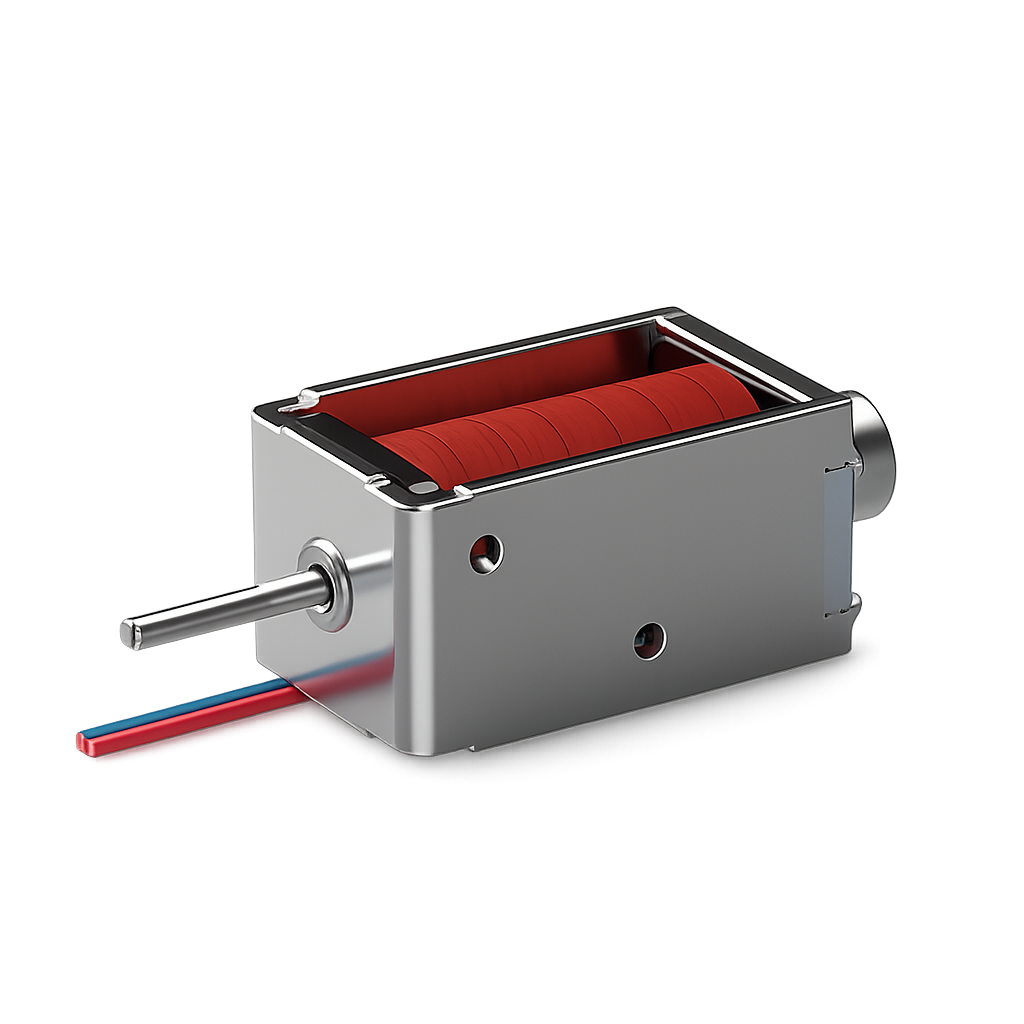

Frame Solenoid, 24V DC, 4mm - 194400 - H1606
$282.00
Kuhnke
Read more
$310.00
Part Number 194402| Push-Pull type solenoid | 24V DC | 100% Duty Cycle | 4mm Stroke | 3.6W | Type Number H1686
Are you looking for a small Frame Solenoid with 24V DC that provides 4mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kuhnke are used in the machine building industry for various applications. Additional features of our frame solenoid are their flexibility, high forces and a small footprint.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Pull type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power draw: | 3.6W |
| Stroke: | 4mm |
| Force: | Start position: 0.5N End position: 1N |
| Connection: | Lead wire |
| IP class: | IP 00 |
| Return spring: | Yes |
Downloads
Bulk Pricing:
- Buy 5 or above and pay only $247.55 each
Description
Part Number 194402| Push-Pull type solenoid | 24V DC | 100% Duty Cycle | 4mm Stroke | 3.6W | Type Number H1686
Are you looking for a small Frame Solenoid with 24V DC that provides 4mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kuhnke are used in the machine building industry for various applications. Additional features of our frame solenoid are their flexibility, high forces and a small footprint.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Pull type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power draw: | 3.6W |
| Stroke: | 4mm |
| Force: | Start position: 0.5N End position: 1N |
| Connection: | Lead wire |
| IP class: | IP 00 |
| Return spring: | Yes |
Downloads
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
H1686
Availability:
Lead time 8-10 weeks
Weight:
0.10 LBS
Product Category:
Linear Solenoids
Supply Voltage:
24V DC
Duty Cycle:
100%
Stroke:
4mm
Design:
Single Coil
Return Spring:
Yes
