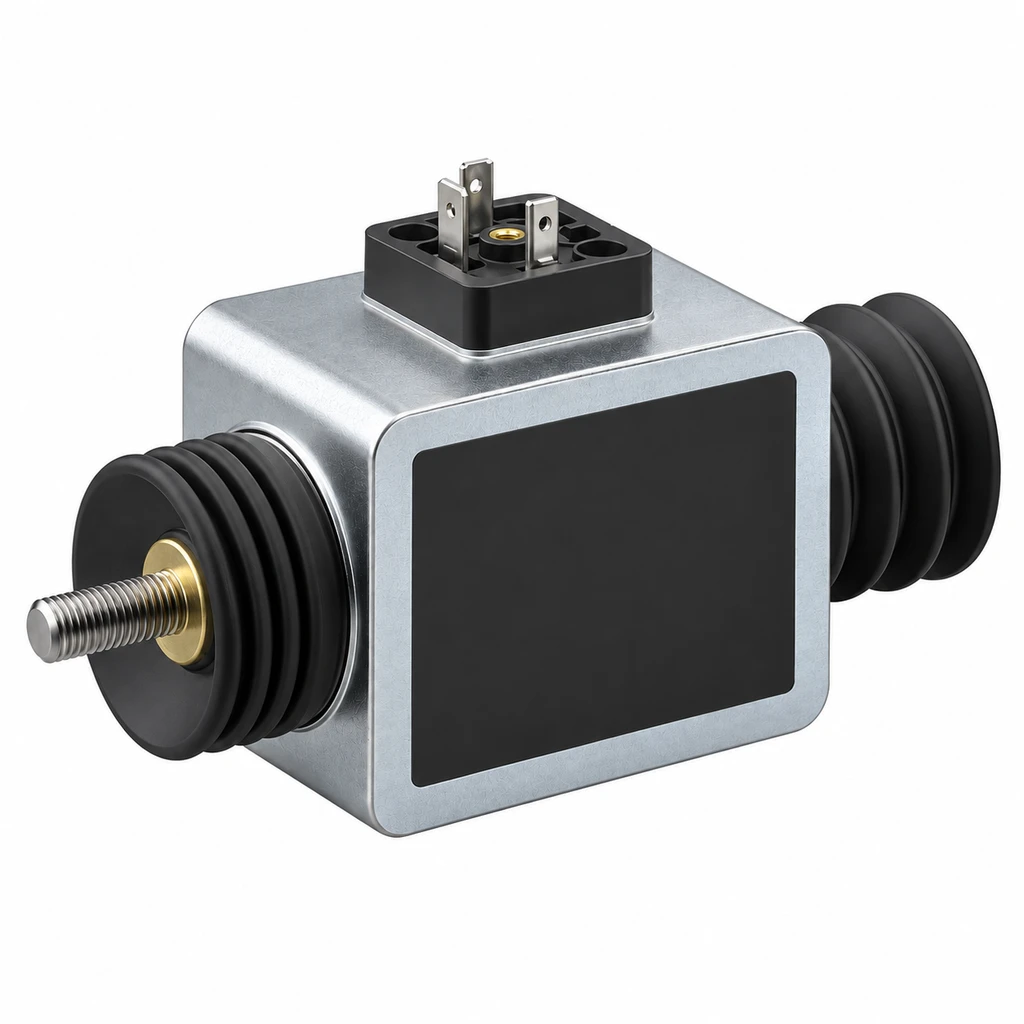

Frame Solenoid, 24V DC, 25mm - 43050005

Binder Magnete
$650.00

Part Number 43050005 | Push-pull type solenoid | 24V DC | 100% Duty Cycle | 25mm Stroke | 22W | Switching Time: 220ms | Type Number LCL048060A02 (old: 43 11605D50)

Are you looking for a Frame Solenoid with 24V DC that provides 25mm of Stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Binder Magnete are used in the machine building industry for a wide range of applications. Additional features of our large sized frame solenoid are high flexibility in regards to stroke, voltage and duty cycle. As well as high forces and a small footprint - due to our solid frame design.

Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.



Technical Details

Operation: Push-pull type solenoid
Supply voltage: 24V DC
Duty cycle: 100%
Power Draw: 22W
Stroke: 25mm
Switching time: 220ms
Connection: 8" wire leads
IP class: IP 54
Insulation class: B
Accessories: Return spring set
(part no. 2080012)



















Downloads




Read more

Bulk Pricing:

  • Buy 5 - 9 and pay only $473.00 each
  • Buy 10 - 19 and pay only $325.00 each
Add to wishlist

Description

Part Number 43050005 | Push-pull type solenoid | 24V DC | 100% Duty Cycle | 25mm Stroke | 22W | Switching Time: 220ms | Type Number LCL048060A02 (old: 43 11605D50)

Are you looking for a Frame Solenoid with 24V DC that provides 25mm of Stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Binder Magnete are used in the machine building industry for a wide range of applications. Additional features of our large sized frame solenoid are high flexibility in regards to stroke, voltage and duty cycle. As well as high forces and a small footprint - due to our solid frame design.

Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.



Technical Details

Operation: Push-pull type solenoid
Supply voltage: 24V DC
Duty cycle: 100%
Power Draw: 22W
Stroke: 25mm
Switching time: 220ms
Connection: 8" wire leads
IP class: IP 54
Insulation class: B
Accessories: Return spring set
(part no. 2080012)



















Downloads




Reviews (0)

Be the first to write a review

Additional info

SKU: 43050005
Availability: Lead time 8-10 weeks
Weight: 2.83 LBS
Min Purchase Qty: 2 units
