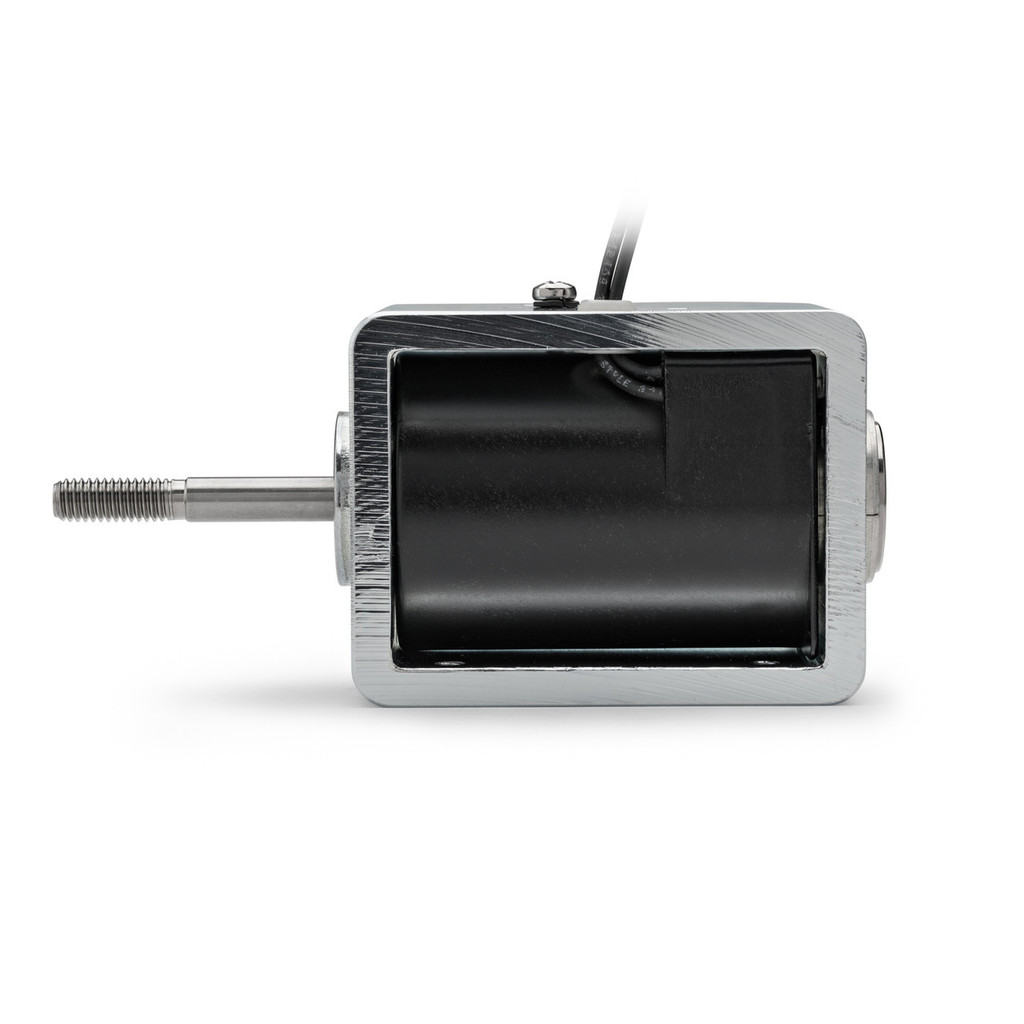

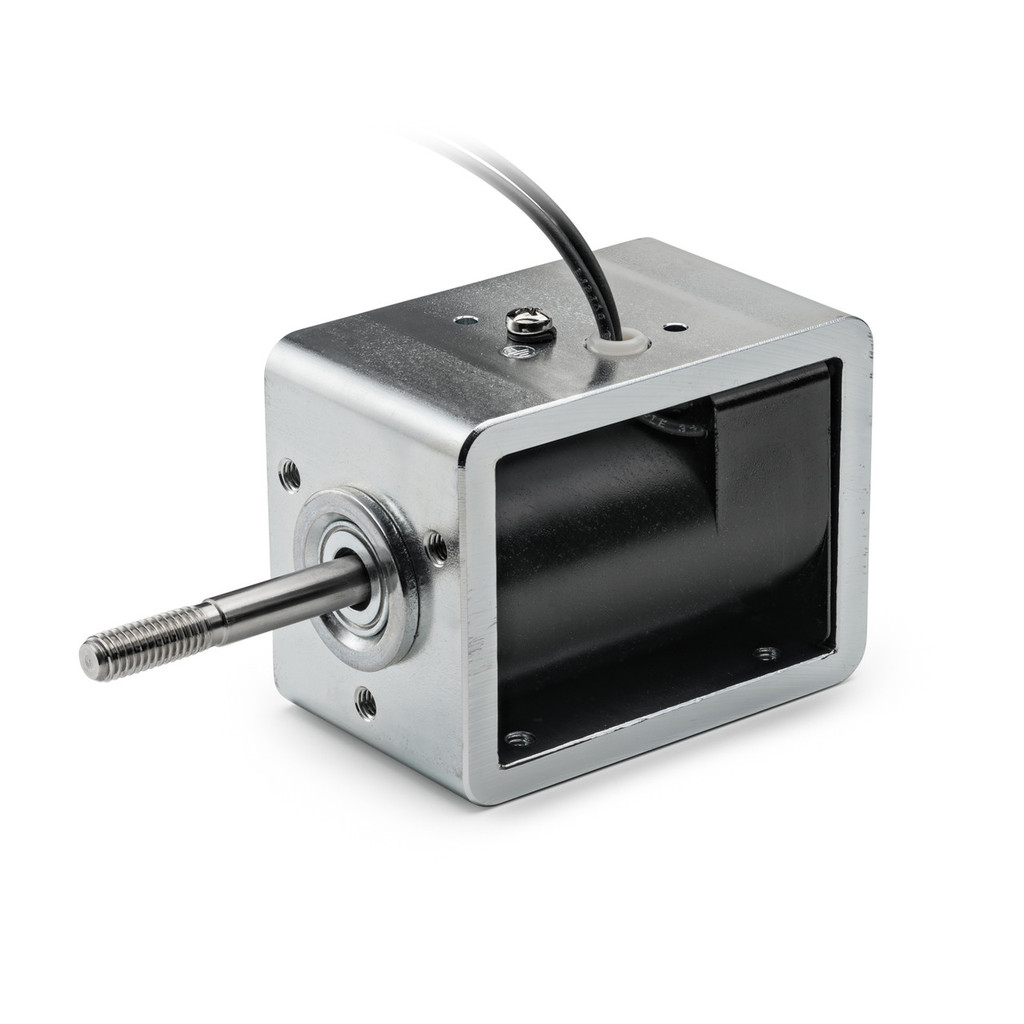

Frame Solenoid, 24V DC, 25mm - 50011477
$499.00
Binder Magnete
Read more
$390.00
Part Number 43050001 | Push-pull type solenoid | 24V DC | 25% Duty Cycle | 25mm Stroke | 81.1W | Switching Time: 95ms | Type Number LCL048060A00
Are you looking for a 24V DC Frame Solenoid with a 25mm Stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Binder Magnete are used in the machine-building industry for a wide range of applications. Additional features of our large-sized frame solenoid include high flexibility regarding stroke, voltage, and duty cycle. As well as high forces and a small footprint, due to our solid frame design.
Unable to find your required voltage or performance parameters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push-pull type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 25% |
| Power Draw: | 81.1W |
| Stroke: | 25mm |
| Switching time: | 95ms |
| Connection: | 8" wire leads |
| IP class: | IP 00 |
| Insulation class: | B |
| Accessories: | Return spring set (part no. 2080012) |
Description
Part Number 43050001 | Push-pull type solenoid | 24V DC | 25% Duty Cycle | 25mm Stroke | 81.1W | Switching Time: 95ms | Type Number LCL048060A00
Are you looking for a 24V DC Frame Solenoid with a 25mm Stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Binder Magnete are used in the machine-building industry for a wide range of applications. Additional features of our large-sized frame solenoid include high flexibility regarding stroke, voltage, and duty cycle. As well as high forces and a small footprint, due to our solid frame design.
Unable to find your required voltage or performance parameters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push-pull type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 25% |
| Power Draw: | 81.1W |
| Stroke: | 25mm |
| Switching time: | 95ms |
| Connection: | 8" wire leads |
| IP class: | IP 00 |
| Insulation class: | B |
| Accessories: | Return spring set (part no. 2080012) |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
43050001-1
Availability:
Lead time 8 - 10 weeks
Weight:
2.56 LBS
Product Category:
Linear Solenoids
Supply Voltage:
24V DC
Duty Cycle:
25%
Stroke:
25mm
Design:
Single Coil
