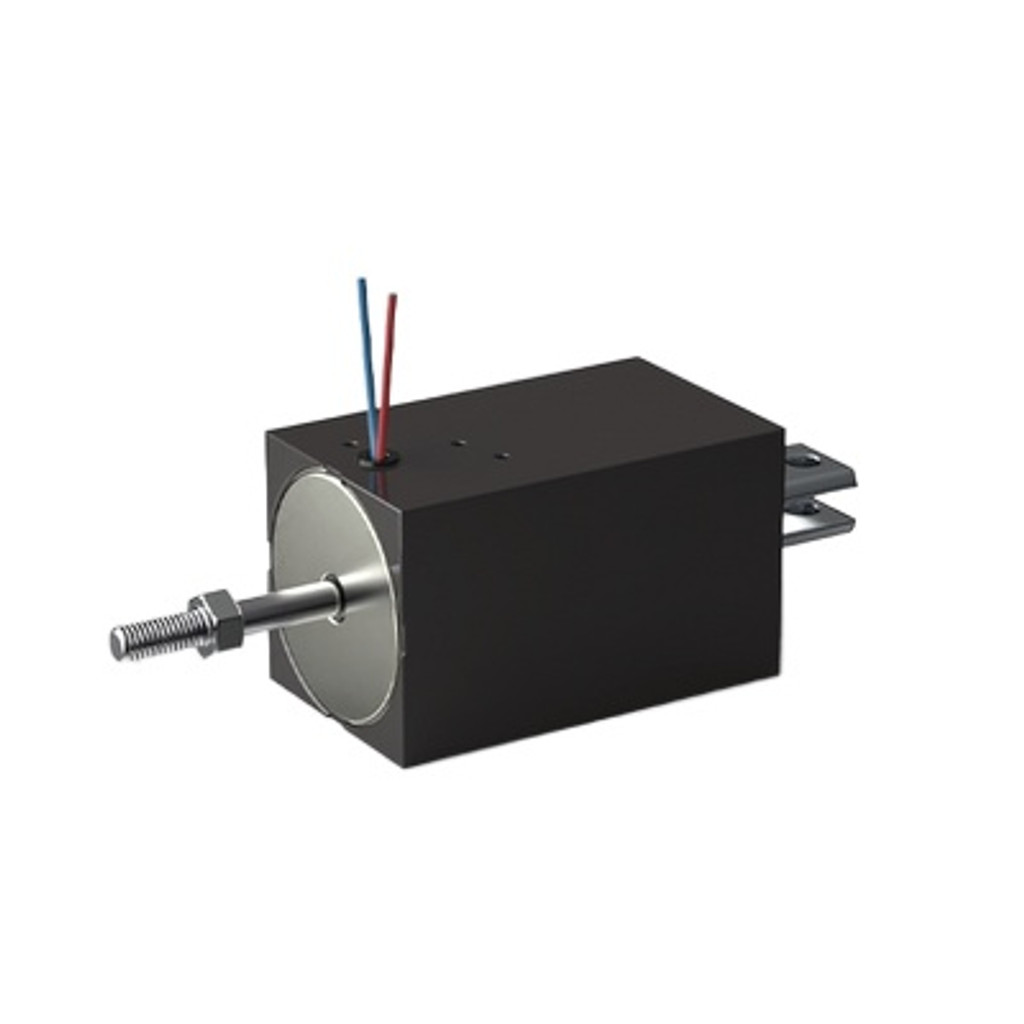

Push Pull Solenoid, 24V DC, 20mm - LHS0800001
$741.00
Kuhnke
Read more
$839.00
Part Number 48971| Push-pull type solenoid | 24V DC | 100% Duty Cycle | 20mm Stroke | 33W | Type Number V65-N-24VDC 100%ED
Are you looking for a Push-Pull Type Solenoid with 24V DC that provides 20mm of Stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kuhnke are used in the automation industry for numerous applications. Additional features of our push-pull type solenoid are the small footprint, the high forces, the long cycle life and the high speed.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push-pull type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power Draw: | 33W |
| Stroke: | 20mm |
| Connection: | Connector |
| IP class: | IP 40 |
| Spring: | no return spring |
| Insulation class: | F |
Bulk Pricing:
- Buy 5 or above and pay only $461.00 each
Description
Part Number 48971| Push-pull type solenoid | 24V DC | 100% Duty Cycle | 20mm Stroke | 33W | Type Number V65-N-24VDC 100%ED
Are you looking for a Push-Pull Type Solenoid with 24V DC that provides 20mm of Stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kuhnke are used in the automation industry for numerous applications. Additional features of our push-pull type solenoid are the small footprint, the high forces, the long cycle life and the high speed.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push-pull type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power Draw: | 33W |
| Stroke: | 20mm |
| Connection: | Connector |
| IP class: | IP 40 |
| Spring: | no return spring |
| Insulation class: | F |
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
48971
Availability:
Lead time 16 weeks
Weight:
5.51 LBS
Min Purchase Qty:
1 unit
Stroke:
20mm
Voltage:
24 VDC
Force:
35N
Duty Cycle:
100%
