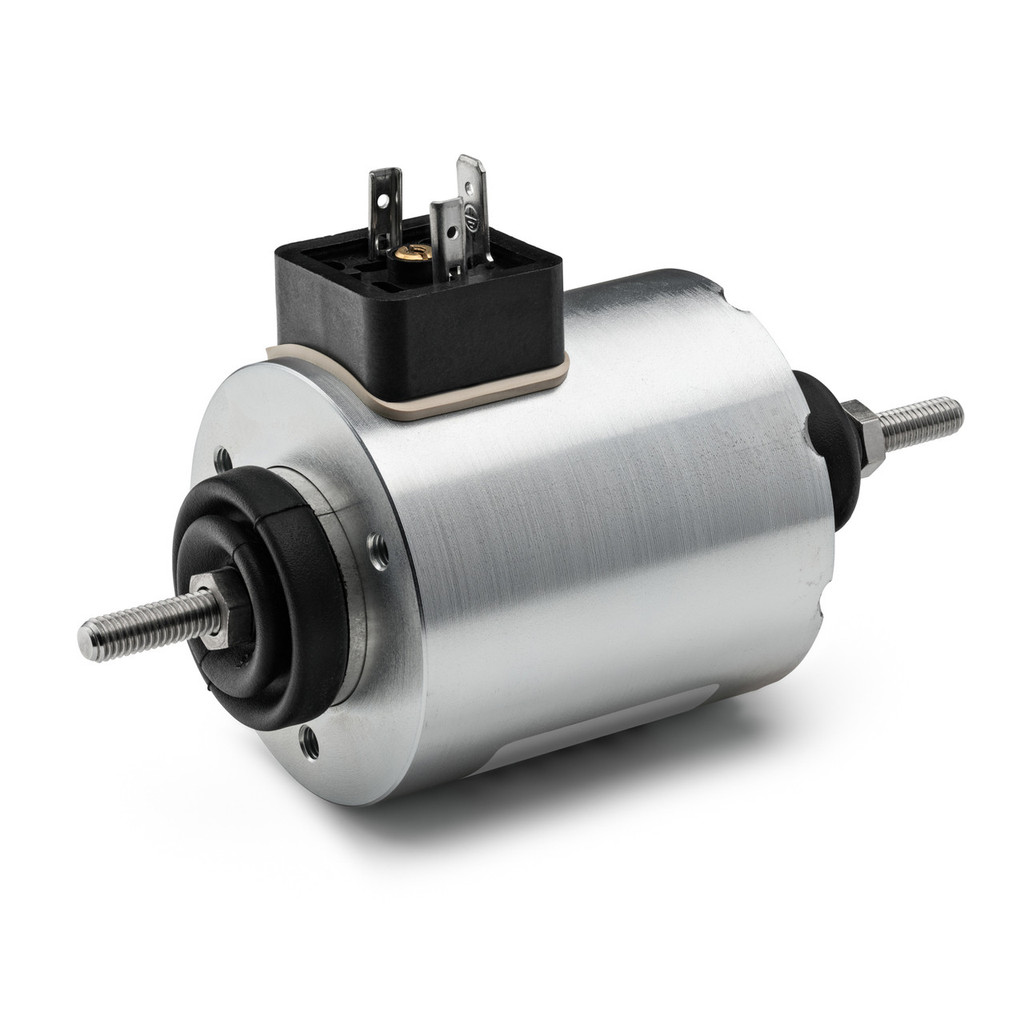

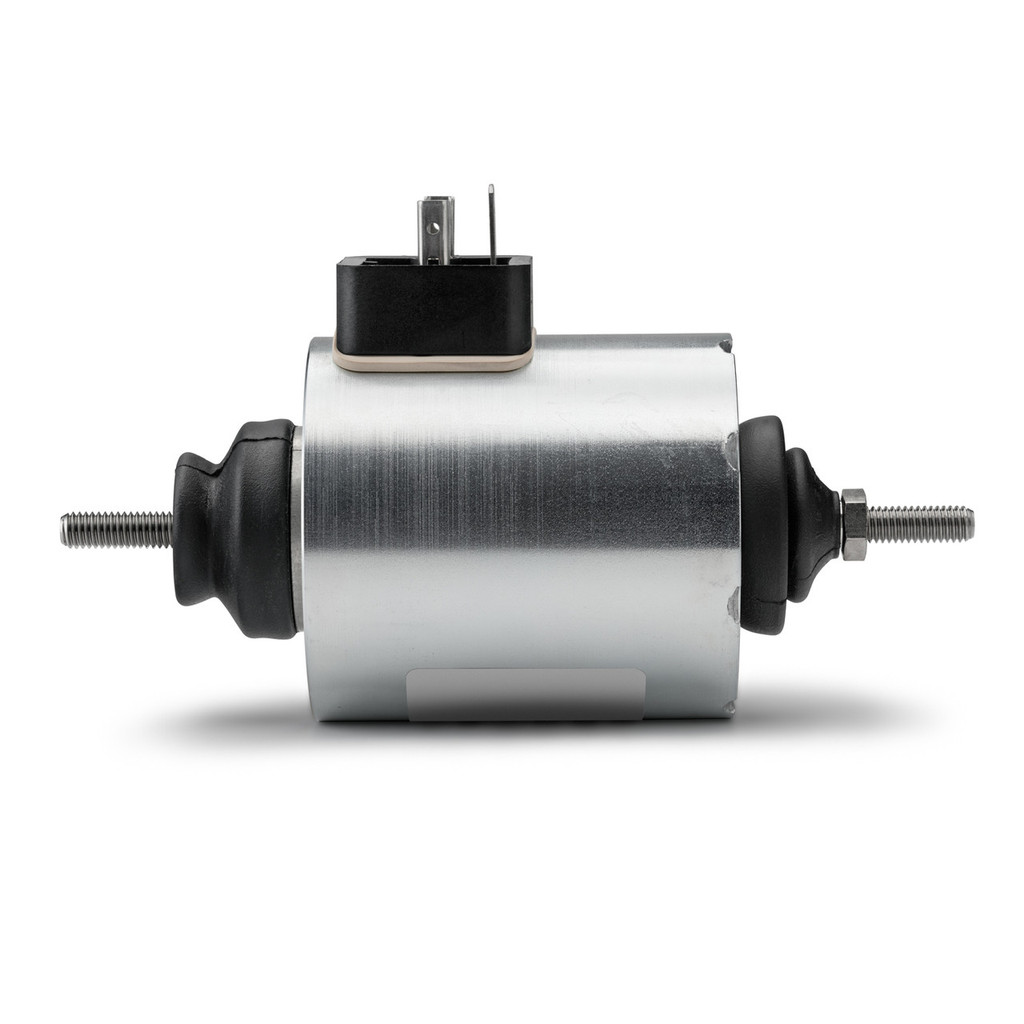

Push Pull Solenoid, 24V DC, 40mm - LHS1350010
$1,706.00
Kendrion
Read more
$3,499.00
Part Number LHS1350017 | Push-pull type solenoid | 125V DC | 100% Duty Cycle | 40mm Stroke | 38 lbs. Force | Type Number LHS135000A00
Are you looking for a Push Pull Solenoid with 125V DC that provides 40mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kendrion are used in the automation industry for different applications. Additional features of our tubular solenoid are the high protection class and its high reliability.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push-pull type solenoid |
| Supply voltage: | 125V DC |
| Duty cycle: | 100% |
| Power Draw: | 82.5W |
| Stroke: | 40mm |
| Force: | 38 lbs. (170N) (at the beginning of the stroke) |
| Switching time: | 590ms |
| Connection: | Connector |
| IP class: | IP 54 |
| Insulation class: | B |
| Accessories: | Connector GD 211 (part no. 430006) |
Downloads
Bulk Pricing:
- Buy 3 - 4 and pay only $2,999.00 each
- Buy 5 - 9 and pay only $2,749.00 each
- Buy 10 or above and pay only $2,449.00 each
Description
Part Number LHS1350017 | Push-pull type solenoid | 125V DC | 100% Duty Cycle | 40mm Stroke | 38 lbs. Force | Type Number LHS135000A00
Are you looking for a Push Pull Solenoid with 125V DC that provides 40mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kendrion are used in the automation industry for different applications. Additional features of our tubular solenoid are the high protection class and its high reliability.
Unable to find your required voltage or performance perimeters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Push-pull type solenoid |
| Supply voltage: | 125V DC |
| Duty cycle: | 100% |
| Power Draw: | 82.5W |
| Stroke: | 40mm |
| Force: | 38 lbs. (170N) (at the beginning of the stroke) |
| Switching time: | 590ms |
| Connection: | Connector |
| IP class: | IP 54 |
| Insulation class: | B |
| Accessories: | Connector GD 211 (part no. 430006) |
Downloads
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
LHS1350017-1
Availability:
Lead time 10 weeks
Weight:
36.91 LBS
Product Category:
Linear Solenoids
Supply Voltage:
24V DC
Duty Cycle:
100%
Stroke:
40mm
Design:
Single Coil
