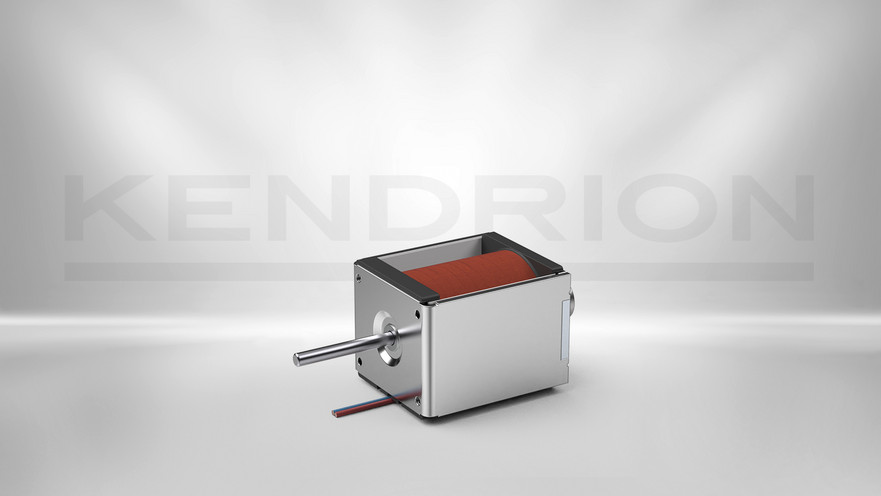

ATEX Linear Solenoid, 24V DC, 15mm - 41060020
$3,899.00
Kuhnke
Read more
$132.00
Part Number 74670 | Push-Pull type solenoid | 24V DC | 100% Duty Cycle | 15mm Stroke | 11W | Type Number H6286
Are you looking for a small Frame Solenoid with 24V DC that provides 15mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kuhnke are used in the machine building industry for various applications. Additional features of our frame solenoid are their flexibility, high forces and a small footprint.
Unable to find your required voltage or performance parameters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Pull-type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power draw: | 11W |
| Stroke: | 15mm |
| Force: | Start position: 0.8N End position: 18N |
| Connection: | Lead wire |
| IP class: | IP 00 |
| Return spring: | Yes |
Downloads
Bulk Pricing:
- Buy 10 - 25 and pay only $112.00 each
- Buy 26 or above and pay only $95.00 each
Description
Part Number 74670 | Push-Pull type solenoid | 24V DC | 100% Duty Cycle | 15mm Stroke | 11W | Type Number H6286
Are you looking for a small Frame Solenoid with 24V DC that provides 15mm of stroke? Solenoid Ninja has the perfect solution for you! Linear Solenoids from Kuhnke are used in the machine building industry for various applications. Additional features of our frame solenoid are their flexibility, high forces and a small footprint.
Unable to find your required voltage or performance parameters?
Contact us at Solenoid Ninja to find the most effective solution for your needs.
Technical Details
| Operation: | Pull-type solenoid |
| Supply voltage: | 24V DC |
| Duty cycle: | 100% |
| Power draw: | 11W |
| Stroke: | 15mm |
| Force: | Start position: 0.8N End position: 18N |
| Connection: | Lead wire |
| IP class: | IP 00 |
| Return spring: | Yes |
Downloads
Reviews (0)
Be the first to write a review
Be the first to write a review
Additional info
SKU:
74670
Availability:
Lead time 2 weeks
Weight:
0.31 LBS
Availability Status:
Ready to Ship
Voltage:
24V DC
Duty Cycle:
100%
Stroke:
15mm
Force:
0.8N
