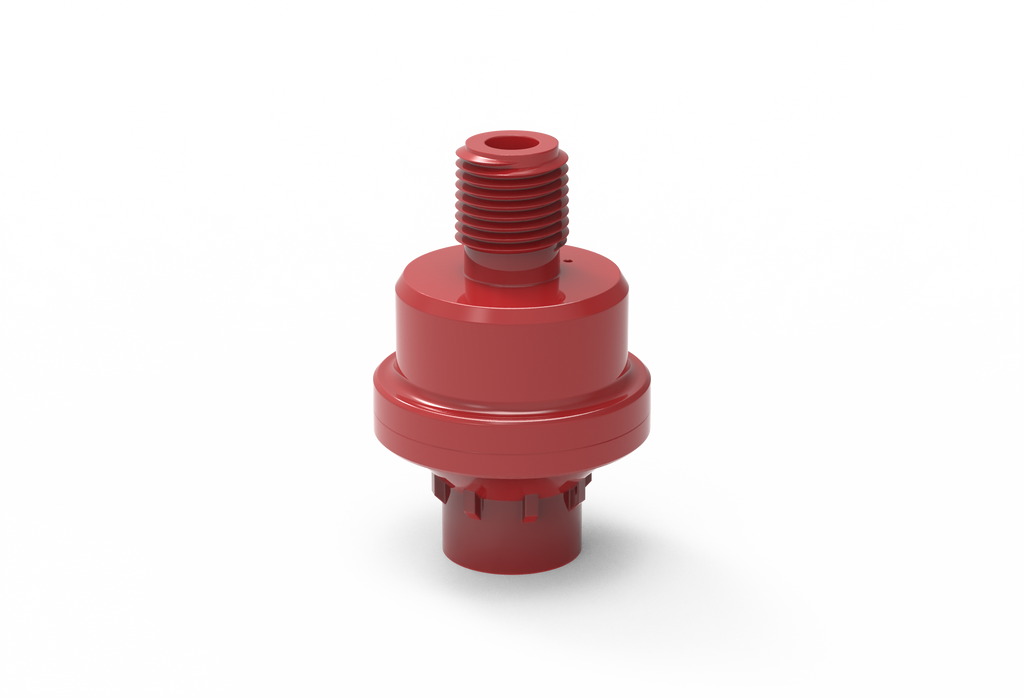

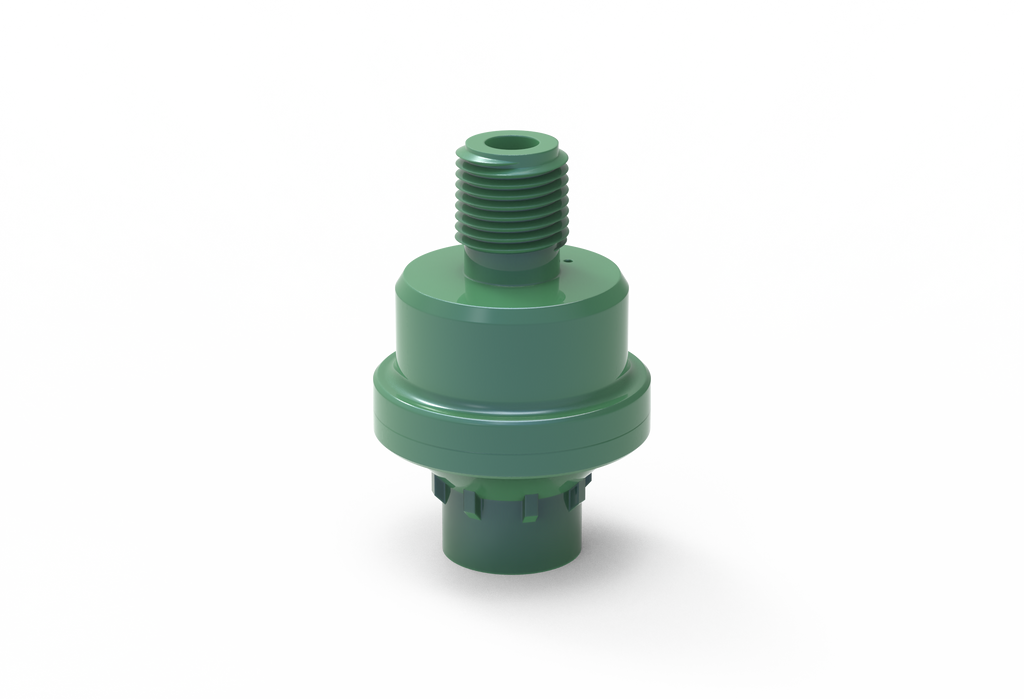

Constant Flow Valve | Operating Pressure: 14.5/21/29/43.5 psi | Thread Sizes: 1/4 NPT/ 11/16'' / 18mm / 3/8" BSP
Are you looking to configure your own constant flow valve? Solenoid Ninja has the perfect solution for you! You decide which outlet pressure and thread size work best for your application, then select the valve that suits your needs.
The CFValve was designed in the 1990’s to improve precision and safety in agricultural applications. CFValve technology has now evolved to deliver unparalleled flow control. It helps to simplify operations, reduce waste, and increase automation. The original CFValve is available in four operating pressures, and is consistently accurate—even with changing input pressures—and needs no calibration or tuning. There are over 2,000,000 CFV units in the field with the lowest failure rate in the industry. CFVI supports the following industries: Agriculture, Lawn Pest Control, Painting and Coating, Fertigation, Hydroponics, Chemical Control and Dosing, Water Conservation, Medical, Car Wash, and Industrial Cleaning.
Unable to find your required psi or other performance parameters?
Contact us directly for order larger than 200 pieces and specific technical questions.
Technical Details
| Standard Threads: | 11/16”; 1/4”NPT; 18mm; 3/8”BSP |
| Operating Pressures: | 14.5psi (1 bar); 21psi (1.5 bar); 29psi (2 bar); 43.5psi (3 bar) |
| Materials: | Delrin®(Body); Viton®(Diaphragm); Stainless Steel (Pin) |
| Flow Rates: | Ultra Low Volume to ½ GPM |
| Flow Rate Accuracy: | +/- 1.5% |
Downloads
Description
Constant Flow Valve | Operating Pressure: 14.5/21/29/43.5 psi | Thread Sizes: 1/4 NPT/ 11/16'' / 18mm / 3/8" BSP
Are you looking to configure your own constant flow valve? Solenoid Ninja has the perfect solution for you! You decide which outlet pressure and thread size work best for your application, then select the valve that suits your needs.
The CFValve was designed in the 1990’s to improve precision and safety in agricultural applications. CFValve technology has now evolved to deliver unparalleled flow control. It helps to simplify operations, reduce waste, and increase automation. The original CFValve is available in four operating pressures, and is consistently accurate—even with changing input pressures—and needs no calibration or tuning. There are over 2,000,000 CFV units in the field with the lowest failure rate in the industry. CFVI supports the following industries: Agriculture, Lawn Pest Control, Painting and Coating, Fertigation, Hydroponics, Chemical Control and Dosing, Water Conservation, Medical, Car Wash, and Industrial Cleaning.
Unable to find your required psi or other performance parameters?
Contact us directly for order larger than 200 pieces and specific technical questions.
Technical Details
| Standard Threads: | 11/16”; 1/4”NPT; 18mm; 3/8”BSP |
| Operating Pressures: | 14.5psi (1 bar); 21psi (1.5 bar); 29psi (2 bar); 43.5psi (3 bar) |
| Materials: | Delrin®(Body); Viton®(Diaphragm); Stainless Steel (Pin) |
| Flow Rates: | Ultra Low Volume to ½ GPM |
| Flow Rate Accuracy: | +/- 1.5% |
